Network station details

<< Back to Network Information

General Information

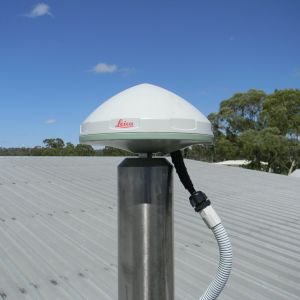

Station Name Ashford Image of CORS Antenna
Partner(s) Inverell Shire Council
Status (not a live update) Operational
CORSnet-NSW Release Date February 2015
Station Code ASHF
SCIMS Number TS 12245
Receiver LEICA GR30
Antenna LEIAR10         NONE
Antenna Height (ARP) 0.000 m
IGS Site Log Geoscience Australia


GNSS Tracking Settings

GPS L2C L5 GLONASS Galileo BeiDou QZSS SBAS
ON ON ON ON ON ON ON OFF

Note: ON = Available and Enabled, OFF = Available but Not Enabled, N/A = Not Available



CORSnet-NSW Coordinates

GDA2020

Datum Coordinate Source
X GDA2020 -4872273.832 Reg13
(PDF 259 kb)
Y GDA2020 2690399.393 Reg13
(PDF 259 kb)
Z GDA2020 -3105522.012 Reg13
(PDF 259 kb)
Latitude GDA2020 -29 19 27.64898 Reg13
(PDF 259 kb)
Longitude GDA2020 151 05 35.35069 Reg13
(PDF 259 kb)
Easting MGA2020
Zone 56
314838.088 Reg13
(PDF 259 kb)
Northing MGA2020
Zone 56
6754569.289 Reg13
(PDF 259 kb)
Derived AHD71 Height (2020) Approximate AHD71 429.218 h-N (DFSI Spatial Services Calculated)
N Value (2020) AUSGeoid2020 35.580 Geoscience Australia
Ellipsoidal Height GDA2020 464.798 Reg13
(PDF 259 kb)



GDA94

Datum Coordinate Source
X GDA94 -4872273.021 Conformal transformation from GDA2020
Y GDA94 2690399.613 Conformal transformation from GDA2020
Z GDA94 -3105523.291 Conformal transformation from GDA2020
Latitude GDA94 -29 19 27.69480 Conformal transformation from GDA2020
Longitude GDA94 151 05 35.32901 Conformal transformation from GDA2020
Easting MGA94
Zone 56
314837.526 Conformal transformation from GDA2020
Northing MGA94
Zone 56
6754567.868 Conformal transformation from GDA2020
Derived AHD71 Height (2009) Approximate AHD71 429.224 h-N (DFSI Spatial Services Calculated)
N value (2009) AUSGeoid09 35.674 Geoscience Australia
Ellipsoidal Height GDA94 464.898 Conformal transformation from GDA2020


Note: These horizontal coordinates are equivalent to GDA94(2010) i.e. no distortions. They are different to those found in SCIMS Online, which are GDA94(1997) coordinates i.e. with distortions. The heights are different to those found in SCIMS Online, which are local AHD71 heights. SCIMS Online values for CORS are determined by local tie surveys which connect to the local survey control network.



GNSS Monitoring

This work is licensed under a Creative Commons Attribution 4.0 International License. GNSS Monitoring Graph © Commonwealth of Australia (Geoscience Australia) 2020.
Creative Commons License



Note: The above graph indicates the long-term stability of a CORS and does not represent actual daily movement. The results are calculated daily and trends are monitored. The diagrams shown are updated regularly. Daily differences in CORS position at the millimetre-level are within the limits (noise level) of current GNSS processing techniques.
