General Information
| Station Name | Willawarrin |  |
|---|---|---|
| Partner(s) | Kempsey Shire Council | |
| Status (not a live update) | Operational | |
| CORSnet-NSW Release Date | May 2014 | |
| Station Code | WLWN | |
| SCIMS Number | TS 12226 | |
| Receiver | TRIMBLE NETR9 | |
| Antenna | TRM59800.00 SCIS | |
| Antenna Height (ARP) | 0.000 m | |
| IGS Site Log | Geoscience Australia | |
| GNSS Site Manager |
Geoscience Australia |
GNSS Tracking Settings
| GPS | L2C | L5 | GLONASS | Galileo | BeiDou | QZSS | SBAS |
|---|---|---|---|---|---|---|---|
| ON | ON | ON | ON | ON | ON | ON | OFF |
Note: ON = Available and Enabled, OFF = Available but Not Enabled, N/A = Not Available
CORSnet-NSW Coordinates
GDA2020
| Datum | Coordinate | Source | |
|---|---|---|---|
| X | GDA2020 | -4862818.530 | Reg13 (PDF 439 kb) |
| Y | GDA2020 | 2517904.688 | Reg13 (PDF 439 kb) |
| Z | GDA2020 | -3259345.206 | Reg13 (PDF 439 kb) |
| Latitude | GDA2020 | -30 55 50.28689 | Reg13 (PDF 439 kb) |
| Longitude | GDA2020 | 152 37 31.66314 | Reg13 (PDF 439 kb) |
| Easting | MGA2020 Zone 56 |
464218.355 | Reg13 (PDF 439 kb) |
| Northing | MGA2020 Zone 56 |
6578025.268 | Reg13 (PDF 439 kb) |
| Derived AHD71 Height (2020) | Approximate AHD71 | 57.863 | h-N (DFSI Spatial Services Calculated) |
| N Value (2020) | AUSGeoid2020 | 31.704 | Geoscience Australia |
| Ellipsoidal Height | GDA2020 | 89.567 | Reg13 (PDF 439 kb) |
GDA94
| Datum | Coordinate | Source | |
|---|---|---|---|
| X | GDA94 | -4862817.722 | Conformal transformation from GDA2020 |
| Y | GDA94 | 2517904.876 | Conformal transformation from GDA2020 |
| Z | GDA94 | -3259346.452 | Conformal transformation from GDA2020 |
| Latitude | GDA94 | -30 55 50.33214 | Conformal transformation from GDA2020 |
| Longitude | GDA94 | 152 37 31.64286 | Conformal transformation from GDA2020 |
| Easting | MGA94 Zone 56 |
464217.821 | Conformal transformation from GDA2020 |
| Northing | MGA94 Zone 56 |
6578023.874 | Conformal transformation from GDA2020 |
| Derived AHD71 Height (2009) | Approximate AHD71 | 57.886 | h-N (DFSI Spatial Services Calculated) |
| N value (2009) | AUSGeoid09 | 31.780 | Geoscience Australia |
| Ellipsoidal Height | GDA94 | 89.666 | Conformal transformation from GDA2020 |
Note: These horizontal coordinates are equivalent to GDA94(2010) i.e. no distortions. They are different to those found in SCIMS Online, which are GDA94(1997) coordinates i.e. with distortions. The heights are different to those found in SCIMS Online, which are local AHD71 heights. SCIMS Online values for CORS are determined by local tie surveys which connect to the local survey control network.

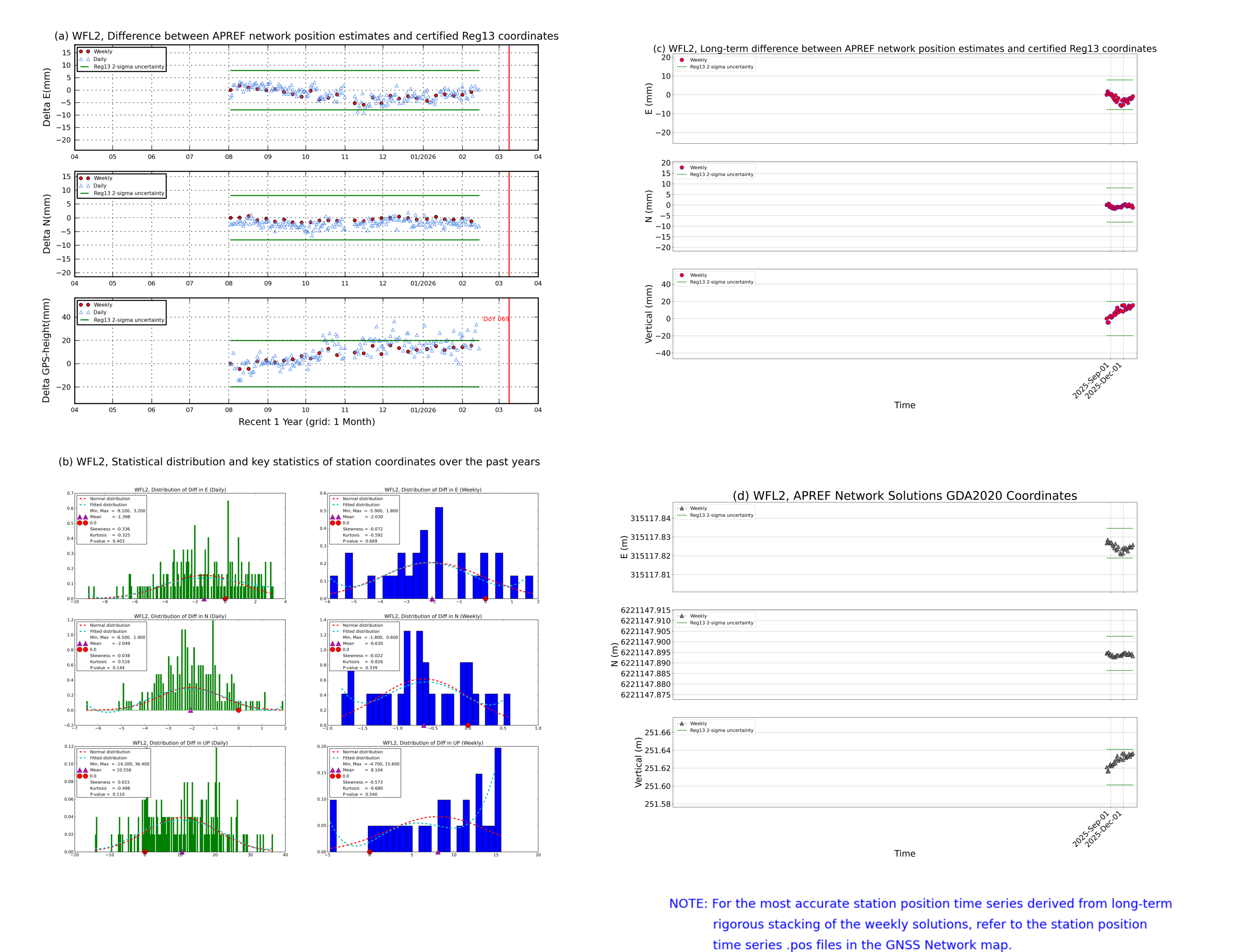

GNSS Monitoring
Note: The above graph indicates the long-term stability of a CORS and does not represent actual daily movement. The results are calculated daily and trends are monitored. The diagrams shown are updated regularly. Daily differences in CORS position at the millimetre-level are within the limits (noise level) of current GNSS processing techniques.
