Network station details

<< Back to Network Information

General Information

Station Name Port Macquarie Image of CORS Antenna
Partner(s) Port Macquarie Hastings Council
Status (not a live update) Operational
CORSnet-NSW Release Date May 2009
Station Code PMAC
SCIMS Number TS 12093
Receiver LEICA GR30
Antenna LEIAS10         NONE
Antenna Height (ARP) 0.000 m
IGS Site Log Geoscience Australia
GNSS Site Manager
Geoscience Australia


GNSS Tracking Settings

GPS L2C L5 GLONASS Galileo BeiDou QZSS SBAS
ON ON ON ON ON ON ON OFF

Note: ON = Available and Enabled, OFF = Available but Not Enabled, N/A = Not Available



CORSnet-NSW Coordinates

GDA2020

Datum Coordinate Source
X GDA2020 -4847531.562 Reg13
(PDF 450 kb)
Y GDA2020 2480854.818 Reg13
(PDF 450 kb)
Z GDA2020 -3309707.269 Reg13
(PDF 450 kb)
Latitude GDA2020 -31 27 42.84240 Reg13
(PDF 450 kb)
Longitude GDA2020 152 53 51.65130 Reg13
(PDF 450 kb)
Easting MGA2020
Zone 56
490279.397 Reg13
(PDF 450 kb)
Northing MGA2020
Zone 56
6519201.503 Reg13
(PDF 450 kb)
Derived AHD71 Height (2020) Approximate AHD71 13.610 h-N (DFSI Spatial Services Calculated)
N Value (2020) AUSGeoid2020 30.174 Geoscience Australia
Ellipsoidal Height GDA2020 43.784 Reg13
(PDF 450 kb)



GDA94

Datum Coordinate Source
X GDA94 -4847530.752 Conformal transformation from GDA2020
Y GDA94 2480854.993 Conformal transformation from GDA2020
Z GDA94 -3309708.506 Conformal transformation from GDA2020
Latitude GDA94 -31 27 42.88753 Conformal transformation from GDA2020
Longitude GDA94 152 53 51.63140 Conformal transformation from GDA2020
Easting MGA94
Zone 56
490278.874 Conformal transformation from GDA2020
Northing MGA94
Zone 56
6519200.113 Conformal transformation from GDA2020
Derived AHD71 Height (2009) Approximate AHD71 13.627 h-N (DFSI Spatial Services Calculated)
N value (2009) AUSGeoid09 30.255 Geoscience Australia
Ellipsoidal Height GDA94 43.882 Conformal transformation from GDA2020


Note: These horizontal coordinates are equivalent to GDA94(2010) i.e. no distortions. They are different to those found in SCIMS Online, which are GDA94(1997) coordinates i.e. with distortions. The heights are different to those found in SCIMS Online, which are local AHD71 heights. SCIMS Online values for CORS are determined by local tie surveys which connect to the local survey control network.

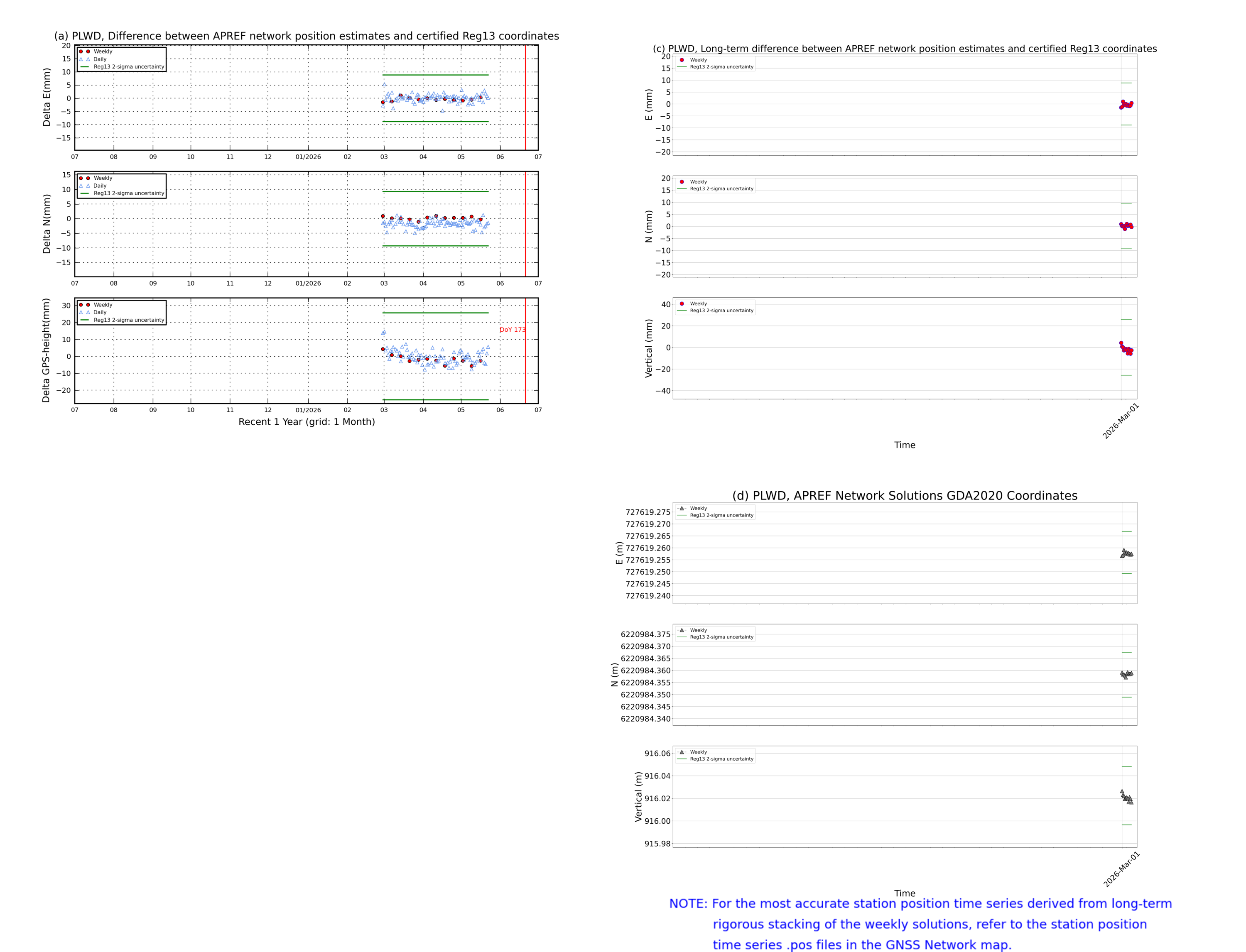

GNSS Monitoring

This work is licensed under a Creative Commons Attribution 4.0 International License. GNSS Monitoring Graph © Commonwealth of Australia (Geoscience Australia) 2020.
Creative Commons License



Note: The above graph indicates the long-term stability of a CORS and does not represent actual daily movement. The results are calculated daily and trends are monitored. The diagrams shown are updated regularly. Daily differences in CORS position at the millimetre-level are within the limits (noise level) of current GNSS processing techniques.
