General Information

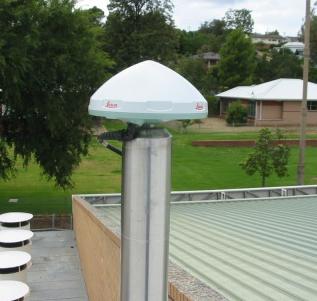

Station Name Port Kembla Image of CORS Antenna
Partner(s) AuScope & Port Kembla Port Corporation
Status (not a live update) Operational
CORSnet-NSW Release Date March 2010
Station Code PTKL
SCIMS Number TS 12067
Receiver TRIMBLE ALLOY
Antenna JAVRINGANT_DM   SCIS
Antenna Height (ARP) 0.000 m
IGS Site Log Geoscience Australia


GNSS Tracking Settings

GPS L2C L5 GLONASS Galileo BeiDou QZSS SBAS
ON ON ON ON ON ON ON OFF

Note: ON = Available and Enabled, OFF = Available but Not Enabled, N/A = Not Available



CORSnet-NSW Coordinates

GDA2020

Datum Coordinate Source
X GDA2020 -4599806.440 Reg13
(PDF 450 kb)
Y GDA2020 2558778.992 Reg13
(PDF 450 kb)
Z GDA2020 -3590075.115 Reg13
(PDF 450 kb)
Latitude GDA2020 -34 28 31.95064 Reg13
(PDF 450 kb)
Longitude GDA2020 150 54 49.32097 Reg13
(PDF 450 kb)
Easting MGA2020
Zone 56
308399.663 Reg13
(PDF 450 kb)
Northing MGA2020
Zone 56
6183139.723 Reg13
(PDF 450 kb)
Derived AHD71 Height (2020) Approximate AHD71 13.845 h-N (DFSI Spatial Services Calculated)
N Value (2020) AUSGeoid2020 20.603 Geoscience Australia
Ellipsoidal Height GDA2020 34.448 Reg13
(PDF 450 kb)



GDA94

Datum Coordinate Source
X GDA94 -4599805.570 Conformal transformation from GDA2020
Y GDA94 2558779.075 Conformal transformation from GDA2020
Z GDA94 -3590076.330 Conformal transformation from GDA2020
Latitude GDA94 -34 28 31.99638 Conformal transformation from GDA2020
Longitude GDA94 150 54 49.30156 Conformal transformation from GDA2020
Easting MGA94
Zone 56
308399.196 Conformal transformation from GDA2020
Northing MGA94
Zone 56
6183138.303 Conformal transformation from GDA2020
Derived AHD71 Height (2009) Approximate AHD71 13.854 h-N (DFSI Spatial Services Calculated)
N value (2009) AUSGeoid09 20.688 Geoscience Australia
Ellipsoidal Height GDA94 34.542 Conformal transformation from GDA2020


Note: These horizontal coordinates are equivalent to GDA94(2010) i.e. no distortions. They are different to those found in SCIMS Online, which are GDA94(1997) coordinates i.e. with distortions. The heights are different to those found in SCIMS Online, which are local AHD71 heights. SCIMS Online values for CORS are determined by local tie surveys which connect to the local survey control network.



GNSS Monitoring

This work is licensed under a Creative Commons Attribution 4.0 International License. GNSS Monitoring Graph © Commonwealth of Australia (Geoscience Australia) 2020.
Creative Commons License



Note: The above graph indicates the long-term stability of a CORS and does not represent actual daily movement. The results are calculated daily and trends are monitored. The diagrams shown are updated regularly. Daily differences in CORS position at the millimetre-level are within the limits (noise level) of current GNSS processing techniques.
